How to Tell if Chainsaw Oiler is Working
Urgent troubleshooting guide from Chainsaw Manual. Learn how to tell if your chainsaw oiler is working, common failure modes, safe tests, and step-by-step repairs to keep your bar oiling consistent and your saw performing.
Most oilsprays stop because the oil line is clogged or the pump isn’t pulling oil. Quick fixes: 1) remove bar oil cap and confirm the reservoir is full and the seal is intact; 2) inspect the oil line for kinks or blockages and clear any debris; 3) run the saw at full throttle briefly and check for a visible oil spray from the bar groove. If no spray, move to deeper diagnostics.
Why the Oiler Matters and What You’re Trying to Do
The chainsaw oiler is responsible for delivering lubricant to the bar and chain during operation. When the oiler isn’t working, friction increases, the chain dulls faster, and you risk operator injury from kickback. The goal of this section is to help you answer: how to tell if chainsaw oiler is working, and what to do next when it isn’t. According to Chainsaw Manual, a healthy oiler maintains a steady oil spray that visibly coats the bar during operation. A visibly dry bar and an oily ground spill under the saw are common signals that something is off. Regular checks are essential, especially before long cutting sessions, to avoid damaging the bar, chain, or saw engine.
Common Symptoms to Look For
Visible lack of oil spray on the bar
- The most obvious sign: the chain runs dry, and you can see little or no oil on the bar after a few seconds of operation.
- In some cases, you may see oil on the clutch side of the bar but not on the tip or midline where spray would normally occur.
Excessive bar and chain wear with a clean bar face
- If the bar edges look worn while there’s no spray, the oiler isn’t delivering oil adequately.
- Check for heat buildup after short runs; a dry bar heats up quickly.
Oil leaks or drips from the bar oil reservoir
- A leak can indicate a loose seal, damaged line, or failed pump seal. Inspect the reservoir area for signs of oil seepage.
Quick Checks You Can Do Safely (No Tools Needed Yet)
- Ensure the oil reservoir is full and the cap seal sits correctly; a loose cap can prevent oil flow.
- Check the oil line for obvious kinks or disconnections that would block flow.
- Look for a clogged or dirty reservoir filter if present on your model.
How this fits into the larger diagnostic process
These quick checks help you decide whether the problem is obviously simple (low oil level, loose seal) or requires deeper investigation into the pump or passages. Chainsaw Manual notes that many oiler issues are resolved by addressing basic maintenance first, saving time and money.
A Word on Oil Types and Seasonality
Different oil formulations behave differently under temperature changes. In cold weather, some oils thicken and move slower, reducing spray, while hot weather can thin oil, increasing spray. Use the oil type recommended by the saw’s manufacturer and ensure it’s appropriate for the climate.
Fuel, Air, and Oil: The Interplay
A well-tuned saw relies on balanced fuel and air delivery along with proper oiling. If the engine runs rich or lean, it can indirectly affect oil pressure as the pump and drive linkage change RPMs. Keep a routine maintenance schedule and verify all three systems during diagnostics.
Steps
Estimated time: 20-40 minutes
- 1
Stop, unplug, and secure saw
Power off the saw, engage the chain brake, and disconnect the spark plug cap or battery as applicable. Safety first ensures you can inspect without accidental starts.
Tip: Use chain brake to prevent any movement during checks. - 2
Check oil level and cap seal
Open the oil reservoir and verify the level matches the manufacturer’s marks. Wipe the seal and cap threads clean before re-seating to prevent air leaks.
Tip: Always use the oil type recommended by the manufacturer. - 3
Inspect the oil line for damage
Follow the line from the reservoir to the bar. Look for cracks, kinks, or disconnections that could block flow. If damaged, replace the line.
Tip: Avoid bending the line sharply; route away from hot components. - 4
Clean the bar oil passages and filter
Remove any visible debris from the oil inlet port and clean the internal passages. Replace any dirty filters if your model has them.
Tip: Use a soft brush and compressed air if available, but never force debris through the line. - 5
Test spray with throttle at low RPM
With the chain brake engaged, start the saw and pull the throttle briefly to see if oil is sprayed along the bar. If not, proceed to pump check.
Tip: Do not run the saw for long at high RPM during testing. - 6
Inspect the pump and drive components
If spray is still absent after basic checks, inspect the pump housing, seals, and drive gear for wear or misalignment. Replace worn parts as needed.
Tip: Refer to service manual for disassembly instructions.
Diagnosis: Oil is not spraying from the bar when the chainsaw is running
Possible Causes
- highLow bar oil level or incorrect oil type
- highClogged oil passages or dirty oil filter
- mediumDamaged oil line or loose fittings
- mediumWorn or faulty oil pump or pump drive gear
- lowExcessive bar oil viscosity in cold weather
Fixes
- easyFill reservoir with the correct bar oil and ensure cap seal is intact
- easyInspect and clear any kinks or blockages in the oil line; reseat connections
- easyInspect oil filter and passages; clean or replace filters as needed
- mediumTest oil pump operation and drive gear alignment; replace if worn or damaged
- hardIf issues persist after steps above, consult a professional for pump replacement
FAQ
What is the first sign that my chainsaw oiler is failing?
The most common sign is little to no oil spray on the bar during operation. You may also notice a dry bar after a short cut. Check the level, line, and reservoir seals first.
Commonly, you’ll see no oil spray on the bar. Check level and seals first, then inspect the oil line.
Can cold weather affect oil spray?
Yes. Some bar oils thicken in cold temperatures, reducing spray. Make sure you’re using a winter-grade oil if you operate in freezing conditions.
Cold weather can thicken oil and reduce spray; use winter-grade oil if you work in freezing temps.
If oil line looks intact but still no spray, what should I do?
Inspect the oil pump and drive gear for wear. A failing pump can deliver insufficient pressure even when the line is clear. Replace worn parts as needed.
Check the pump and drive gear for wear if the line is fine but there’s no spray.
Is it safe to run the saw to test the oiler after maintenance?
Yes, but keep the chain brake engaged and stand to the side. Use minimal throttle during testing to observe the spray safely.
Run the saw with the chain brake on and test at low throttle to check spray safely.
What oil type should I use?
Use the oil specified by the manufacturer, designed for bar and chain lubrication. Different climates may benefit from climate-appropriate oil choices.
Use the oil your saw maker recommends and adjust for climate if needed.
Watch Video
The Essentials

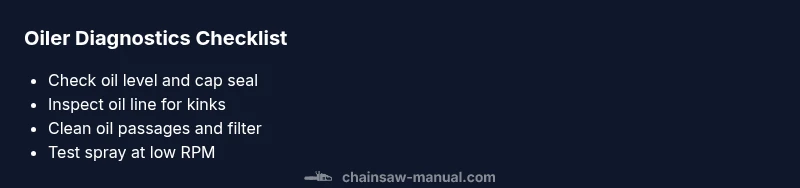

- Check oil level and seal before deeper diagnostics
- Clear clogs in lines and passages first
- Test spray at low RPM to verify oil delivery
- Inspect pump drive components if spray remains absent
- Regular maintenance prevents oiling failures
