How to Measure Chainsaw Length

Why measuring chainsaw length matters

Understanding how to measure chainsaw length is essential for safe operation, efficient cutting, and proper bar replacement. When homeowners and professionals know exactly how to measure chainsaw length, they can choose compatible bars, avoid overloading the engine, and maintain optimal balance during cuts. This practice affects cutting reach, leverage, fuel efficiency, and how safety devices align with the saw’s geometry. Chainsaw Manual emphasizes precision because a misread length can cause bar-dent wear, kickback risk, or reduced chain tension stability. By learning the correct approach to measurement, you’ll improve performance across tasks like felling, limbing, and trimming, while protecting your tool and yourself.

According to Chainsaw Manual, the most reliable starting point is the length stamped on the bar. Always verify this spec with a direct measurement on the actual bar and ensure the chain is removed during the process to avoid interference. This ensures you aren’t guessing based on worn or altered bars. The goal is a measurement that mirrors real-world use, not an archival number from a previous owner. Mastery of this skill directly translates into safer handling, better balance, and longer bar life.

Understanding bar length vs. chain length

Bar length and chain length are related but not interchangeable. Bar length is the straight-line distance from the bar’s mounting face to the tip along the centerline, representing how far the cutting edge can reach during a cut. The chain length refers to the moving cutting edge and is determined by pitch, gauge, and drive links, not simply by bar length. For accurate matching, focus on the bar length when shopping for replacements, and keep the chain size aligned to the bar specs. If you confuse the two, you risk choosing a bar that doesn’t fit the saw’s mounting hardware or one that alters chain tension geometry.

When inspecting a bar, look for stamping near the end that indicates the approved length. If the stamp is worn, perform a direct measurement after removing the chain. This cross-check helps confirm that you’re ordering the correct length for your tasks and can help you tailor bar length to specific applications, such as smaller limbs versus large-diameter logs. A correct measurement supports safer operation and smoother maintenance.

Tools and safety considerations

Safety comes first in any length-measurement task. Before you begin, park the saw on a stable surface, engage the chain brake, and remove the spark plug cap or disconnect power if you’re using an electric model. Gather the essential tools: a reliable tape measure or ruler, marker or chalk, a clean workspace, gloves, eye protection, and a notebook for notes. If you have calipers, they can help with precise measurements, particularly on worn bars. Keep the work area clean and well-lit; a dropped part can be hard to locate and may cause injury. Handling the bar itself requires care to avoid pinching fingers against sharp edges. By combining proper safety steps with precise measurement, you’ll avoid careless mistakes and ensure your bar-length decision aligns with manufacturer specifications.

Also consider environmental conditions: cold, wet, or dirty bars can skew measurements if the metal contracts or if markings smear. Use a dry cloth to wipe the bar to ensure a clean measuring surface. If you’re performing this as part of regular maintenance, schedule it after cleaning and before lubrication for the most reliable results.

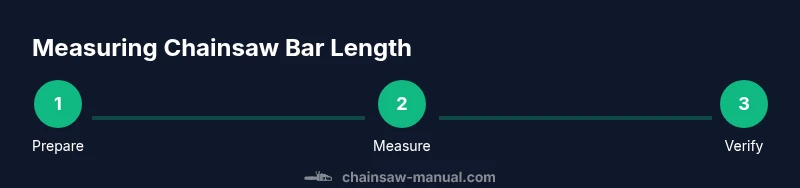

Step-by-step measurement overview

Measuring length accurately requires a calm, methodical approach. Follow these guidelines to ensure you obtain a consistent result every time:

• Start with safety: power off the unit and secure it. Remove the chain before measuring to prevent catching and to avoid skewing measurements with chain tension.
• Identify mounting face: locate the inner edge of the bar where it sits against the saw body. This is the reference point for a true bar length reading.
• Extend along the centerline: place the tape measure along the top of the bar from the mounting face toward the tip. Keep the tape flat and aligned with the bar’s centerline to avoid misreads due to curvature.
• Read the tip: stop at the farthest point of the bar tip. Do not include any protrusions beyond the bar’s edge, and avoid counting the sprocket area.
• Record and compare: write down the measured length and compare it with the length stamped on the bar. If there’s a discrepancy, recheck with a second measurement on a flat surface.
• Reassemble and verify: once measurements are confirmed, reattach the chain, test tension, and verify the alignment with safety checks.

Tip: For curved or worn tips, measure along the straight centerline rather than following the bar’s edge, which can prevent underestimation due to curvature. If you’re unsure, measure twice and consult the owner’s manual. Estimated time: 15-25 minutes.
